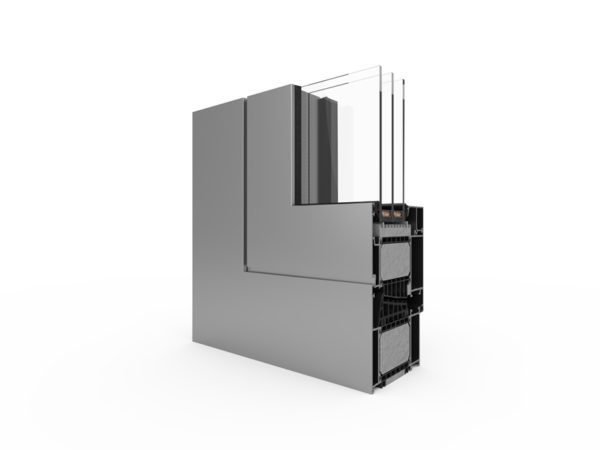

MB-104 Passive

  • frame with the contruction depth of 95 mm
  • sash with the contruction depth of 104 mm
  • glazing with glass units up to 71 mm (frame) / up to 81 mm (sash)
  • standard glazing unit 4th/16Ar/4/16Ar/4th [Ug = 0.6]
  • maximum sash size – H up to 2900 mm, L up to 1700 mm
  • we lacquer in the full RAL K7 colour palette and, on request, in other colours (use powder code)
  • 0.73 Uw for Ug = 0.5 (Ultimate spacer)*
  • 2 Gaskets
  • 3 Chambers
Category: Product ID: 27498

Description

The MB-104 Passive system meets all the requirements for joinery used in passive construction, which is confirmed by the certificates of the PHI Darmstadt Passive House Institute. The system is used to create elements of external development.

*The above value of Uw is given for a reference window with dimensions of 1230 x 1480 mm, in the best thermal variant.

The publication does not constitute a commercial offer. The presented graphic materials are for illustrative purposes only, and the actual colours and textures of the products may differ from those shown in the advertising materials. The graphics presented, including the presentation of colours, cannot constitute the basis for a complaint. Renders show selected profile and glazing sets

Additional information

Manufacturer

Aluprof

Profile shape

MB-104 PASSIVE, MB-104 PASSIVE AERO, MB-104 PASSIVE SI
